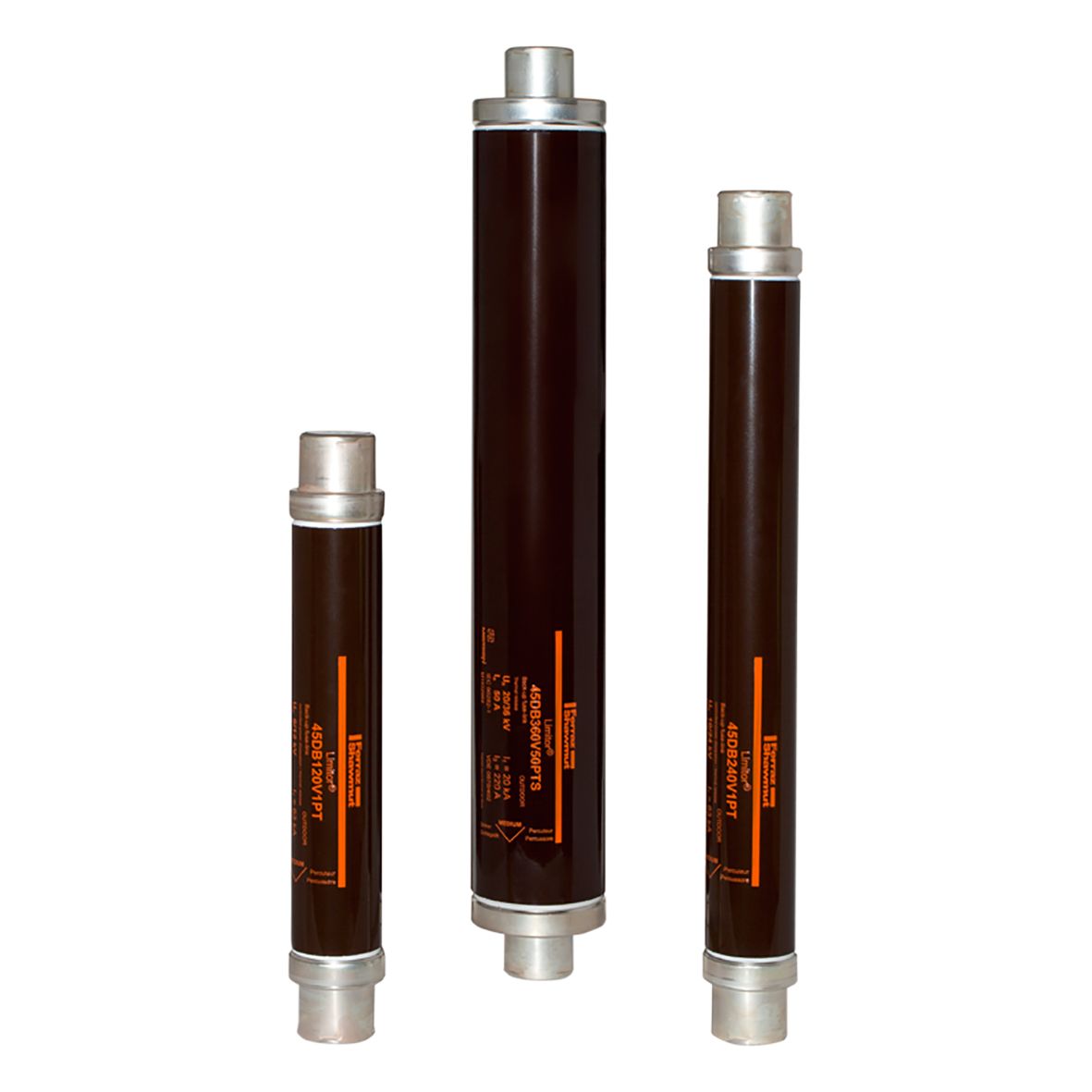

HV fuse, DIN , VDE, 36kV 50A, 537mm, 45mm, medium striker 80N, thermal striker
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-PTD HV fuse-links are back-up fuses as defined in the standards: IEC 60282-1 and VDE 0670 T402 and dedicated to protect transformers in combination with air or gas insulated switchgear against the thermal and dynamic effects of short-circuit currents.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
Limitor®-PTD HV fuse-links are perfectly designed to be used in combination with HV switchgear.
Siemens and Ormazabal recommend Limitor®-PTD HV fuses to be used in their gas-insulated switchgear.
Brand: Limitor®
Add to QuoteSpecifications
| Item Number | A1000293 |
|---|---|
| EAN UPC Code | 3605340455786 |
| GTIN Sell Pack | 33605340455787 |
| Applications | HV Transformer protection |
| Approvals Standards |
|
| Brand Name | Mersen |
| Country Of Origin | HU |
| Features Benefits |
|
| Product Line | Limitor®- PTD Back-up Fuses, with Controlled Power Dissipation |
| Product Brand | Limitor® |
| Product Family | Fuses |
| Product Group | High Voltage IEC Fuses |
| Product Type | DIN HV Back-up Fuses for Transformers |
| AC Max I R Breaking Capacity I1 | 20 kA |
| Body Insulating Material | Ceramic |
| Connection Terminal Material | Silver-Plated Copper |
| Connection Terminal Type | Cylindrical |
| Fuse Size | d=88mm, L=537mm |
| Indication System | 1 |
| Indication System Type | Striker |
| Mounting | Clip |
| Product Diameter | 3.46 in |
| Product Length | 23.74 in |
| Product Weight | 14.33 lb |
| Sell Pack Description | Box |
| Sell Pack Height | 3.94 in |
| Sell Pack Length | 25.59 in |
| Sell Pack Width | 3.94 in |
| Sell Pack Quantity | 1 EACH |
| Sell Pack Weight | 14.33 lb |
| AC Min Interrupting Rating MBC | 220 A |
| Ampere Rating | 50 A |
| Catalogue No | 45DB360V50PTD |
| Clearing I2t At Rated Voltage | 40 kA²s |
| Item Description | H 3609P BCKUP T VDE537-88/50 |
| Minimum Quantity Per Order | 1 |
| Order Multiple | 1 |
| Power Dissipation At Rated Current Value | 183 W |
| Rated Voltage AC IEC | 36 kV |
| Short Description | HV fuse, DIN , VDE, 36kV 50A, 537mm, 45mm, medium striker 80N, thermal striker |
| Suitable For Outdoor Use | 0 |
| Suitable For Outdoor Use | 0 |
