A1000247

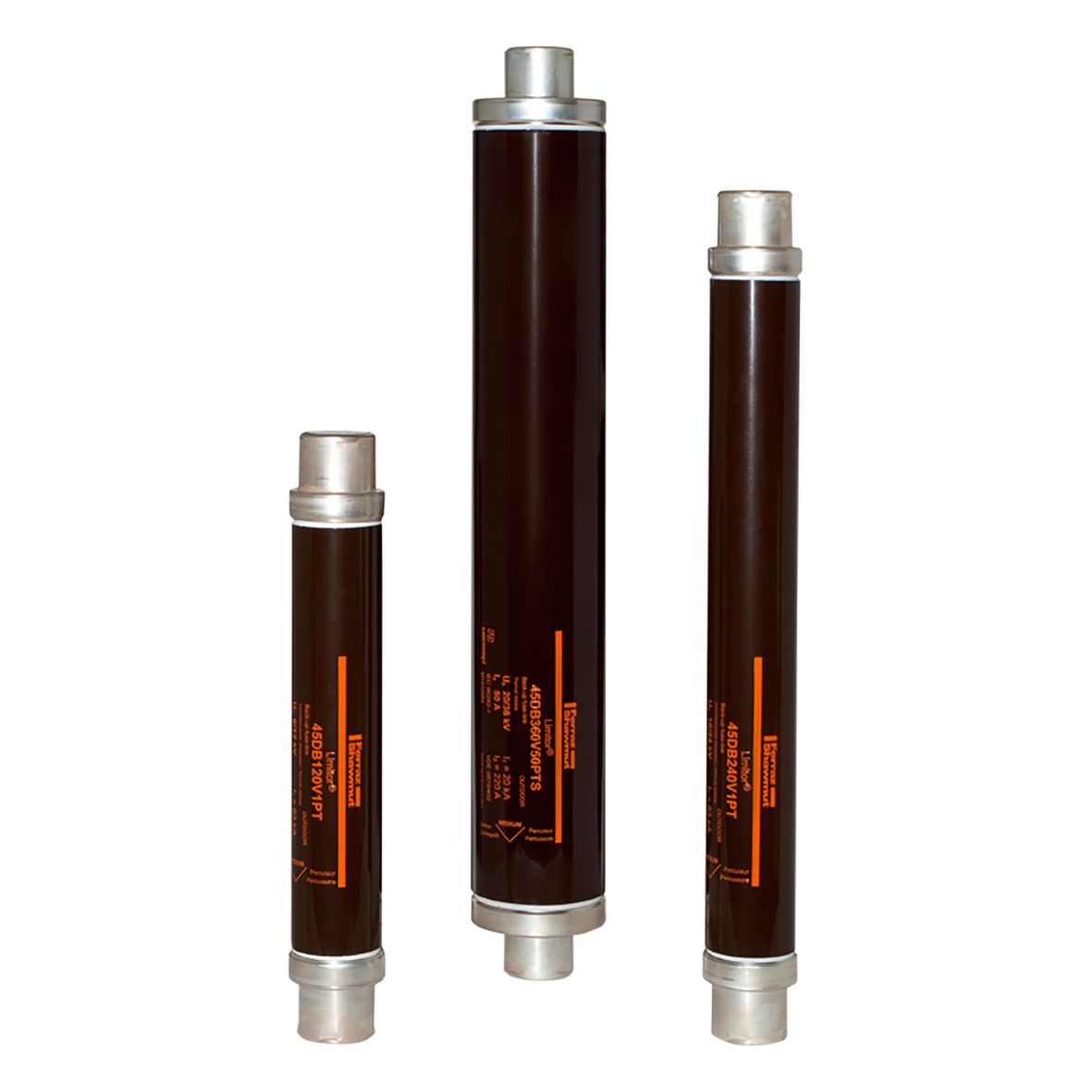

HV fuse, DIN 43625 , VDE0670 T402, 12kV 63A, 292mm, 45mm, medium striker 80N
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-PD HV fuses are back-up fuses as defined in the standards: IEC 60282-1 and VDE 0670 T402 and dedicated to protect transformers against effects of short-circuit currents.
The VDE 0670 T402 defines fuses between 6.3A and 160A, for other ratings, thanks to consult Limitor®-P HV fuses range.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
Brand: Limitor®
Add to QuoteSpecifications
| Item Number | A1000247 |
|---|---|
| EAN UPC Code | 3605340456356 |
| GTIN Sell Pack | 33605340456357 |
| Applications | HV Transformer protection |
| Approvals Standards |
|
| Brand Name | Mersen |
| Country Of Origin | HU |
| Features Benefits |
|
| Product Line | Limitor®- PD Back-up Fuses, without Controlled Power Dissipation |
| Product Brand | Limitor® |
| Product Family | Fuses |
| Product Group | High Voltage IEC Fuses |
| Product Type | DIN HV Back-up Fuses for Transformers |
| AC Max I R Breaking Capacity I1 | 80 kA |
| Body Insulating Material | Ceramic |
| Connection Terminal Material | Silver-Plated Copper |
| Connection Terminal Type | Cylindrical |
| Fuse Size | d=65mm, L=292mm |
| Indication System | 1 |
| Indication System Type | Striker |
| Mounting | Clip |
| Product Diameter | 2.56 in |
| Product Length | 14.09 in |
| Product Weight | 4.85 lb |
| Sell Pack Description | Box |
| Sell Pack Height | 15.35 in |
| Sell Pack Length | 2.64 in |
| Sell Pack Width | 2.64 in |
| Sell Pack Quantity | 1 EACH |
| Sell Pack Weight | 4.85 lb |
| AC Min Interrupting Rating MBC | 220 A |
| Ampere Rating | 63 A |
| Catalogue No | 45DB120V63PD |
| Clearing I2t At Rated Voltage | 63 kA²s |
| Item Description | H 1209P BCKUP VDE292-65/63 |
| Minimum Quantity Per Order | 1 |
| Order Multiple | 1 |
| Power Dissipation At Rated Current Value | 60 W |
| Rated Voltage AC IEC | 12 kV |
| Short Description | HV fuse, DIN 43625 , VDE0670 T402, 12kV 63A, 292mm, 45mm, medium striker 80N |
| Suitable For Outdoor Use | 0 |
| Suitable For Outdoor Use | 0 |
