A1000155

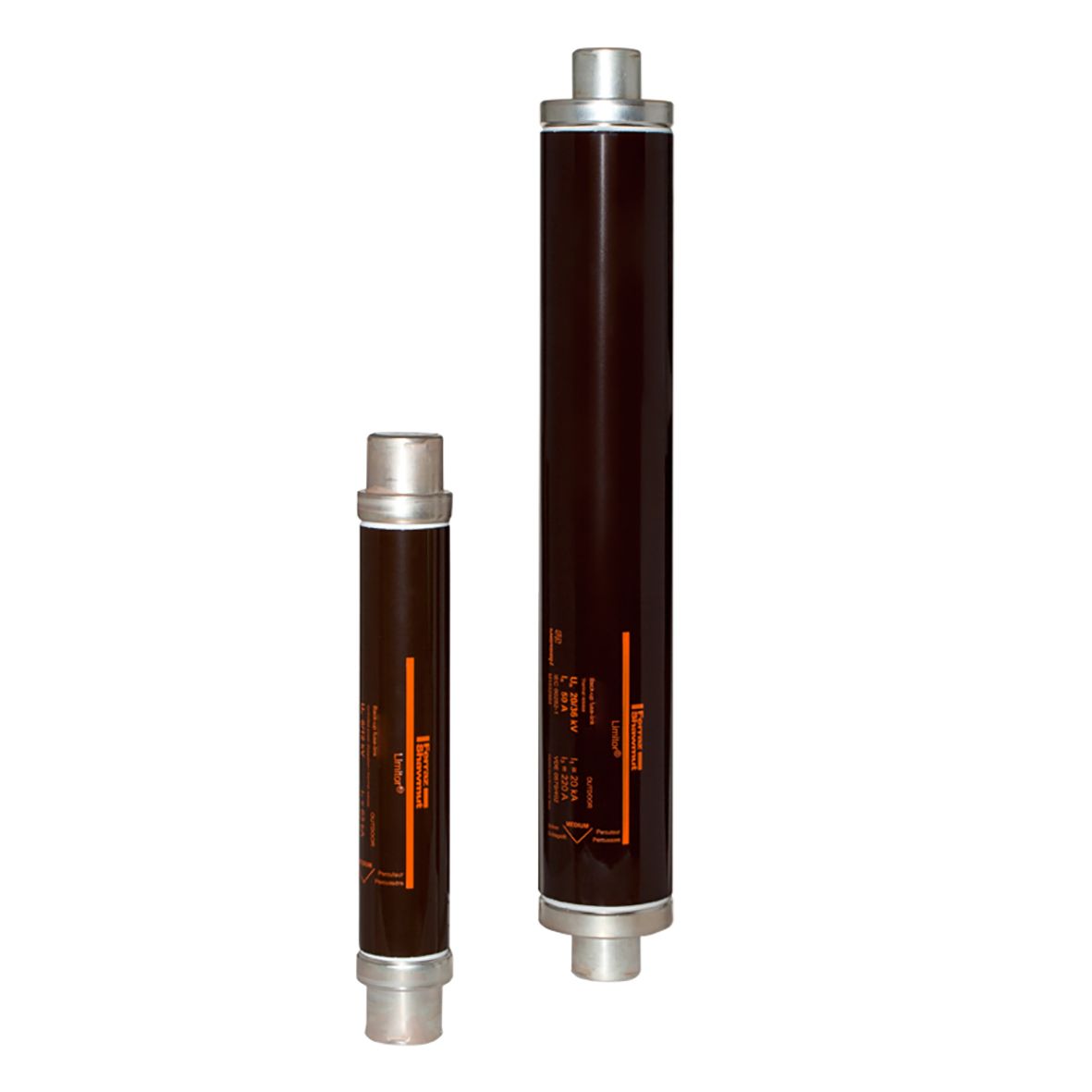

General Purpose Limitor®-G HV fuse, DIN 43625, VDE0670, 6/12kV 40A, 292mm, 78mm
Mersen HV fuse-links have been used for reliable protection in high-voltage switchgear and controlgear and high-voltage systems for decades.
Limitor®-G HV fuses are general purpose fuses as defined in the IEC 60282-1 standard and dedicated to protect transformers against effects of short-circuit currents and low overcurrents.
To guarantee high quality, Mersen uses the best materials: fuse-elements are in pure silver, caps are in copper coated with silver and bodies are in ceramic.
Brand: Limitor®
Add to QuoteSpecifications
| Item Number | A1000155 |
|---|---|
| EAN UPC Code | 3605340453287 |
| GTIN Sell Pack | 33605340453288 |
| Applications | HV Transformer protection |
| Approvals Standards |
|
| Brand Name | Mersen |
| Country Of Origin | HU |
| Features Benefits |
|
| Product Line | Limitor®-G General Purpose Fuses |
| Product Brand | Limitor® |
| Product Family | Fuses |
| Product Group | High Voltage IEC Fuses |
| Product Type | DIN HV General Purpose Fuses for transformers |
| AC Max I R Breaking Capacity I1 | 40 kA |
| Body Insulating Material | Ceramic |
| Connection Terminal Material | Silver-Plated Copper |
| Connection Terminal Type | Cylindrical |
| Fuse Size | d=78mm, L=292mm |
| Indication System | 1 |
| Indication System Type | Striker |
| Mounting | Clip |
| Product Diameter | 3.07 in |
| Product Length | 14.09 in |
| Product Weight | 6.834 lb |
| Sell Pack Description | Box |
| Sell Pack Height | 4.13 in |
| Sell Pack Length | 14.76 in |
| Sell Pack Width | 4.33 in |
| Sell Pack Quantity | 1 EACH |
| Sell Pack Weight | 6.834 lb |
| AC Min Interrupting Rating MBC | 0 0 |
| Ampere Rating | 40 A |
| Catalogue No | 45DG120V40P |
| Clearing I2t At Rated Voltage | 110 kA²s |
| Item Description | H 1209P GEN PURPOSE 292-78/40 |
| Minimum Quantity Per Order | 1 |
| Order Multiple | 1 |
| Power Dissipation At Rated Current Value | 24 W |
| Rated Voltage AC IEC | 12 kV |
| Short Description | General Purpose Limitor®-G HV fuse, DIN 43625, VDE0670, 6/12kV 40A, 292mm, 78mm |
| Suitable For Outdoor Use | 0 |
| Suitable For Outdoor Use | 0 |
