83040610

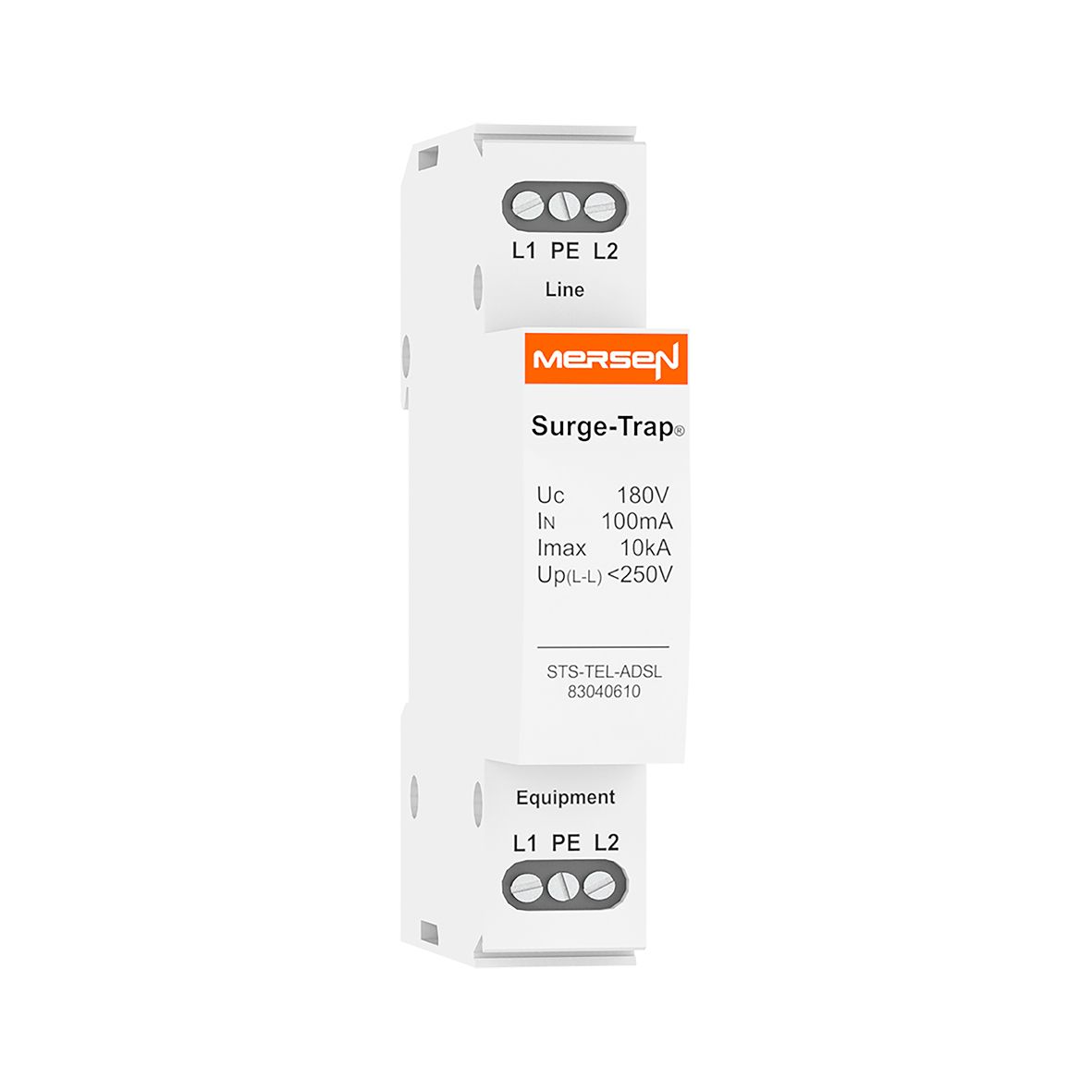

SPD for telephone lines ADSL, DIN rail format, ADSL, 10 kA.
STS TEL is the series of surge protection devices for telephone signal lines.These are protectors for a final step of very fine protection to be installed as close as possible to particularly sensitive equipment connected to these communications lines. Meets the IEC 61643-21 standard.
Brand: Surge-Trap®
Add to QuoteSpecifications
| Item Number | 83040610 |
|---|---|
| EAN UPC Code | 8435297863571 |
| GTIN Sell Pack | 38435297863572 |
| Applications |
|
| Approvals Standards |
|
| Brand Name | Mersen |
| Country Of Origin | ES |
| Degree Of Protection Ip | IP20 |
| Features Benefits |
|
| Max Operating Temp | 60 °C |
| Min Operating Temp | -20 °C |
| Product Line | Surge-Trap® Signal - STS TEL |
| Product Brand | Surge-Trap® |
| Product Family | Surge Protection |
| Product Group | Signal Line SPD |
| Support Brand | Cirprotec |
| Wire Type | 0.5 ... 2.5 mm² |
| Housing Material | PC+GF; V-0 |
| Indication System | 0 |
| Product Height | 3.54 in |
| Product Length | 2.76 in |
| Product Weight | 0.126 lb |
| Product Width | 0.69 in |
| Response Time | 1 ns |
| Sell Pack Description | Box |
| Sell Pack Height | 4.17 in |
| Sell Pack Length | 3.15 in |
| Sell Pack Width | 0.98 in |
| Sell Pack Quantity | 1 Each |
| Sell Pack Weight | 0.152 lb |
| Bandwidth | 3 MHz |
| Catalogue No | STS-TEL-ADSL |
| Item Description | STS-TEL-ADSL |
| Max Discharge Current Imax 8 20 | 10kA |
| Nominal Discharge Current | 5kA |
| Nominal Operating Volt Rating Un | 50 V |
| Number Of Wires | 1 Pair |
| Order Multiple | 1 |
| Rated Current Load Il | 0.1 A |
| Short Description | SPD for telephone lines ADSL, DIN rail format, ADSL, 10 kA. |
| Suitable For Outdoor Use | 0 |
| UCPV | 180 V |
| Wire Connections | Terminal |
| Suitable For Outdoor Use | 0 |
