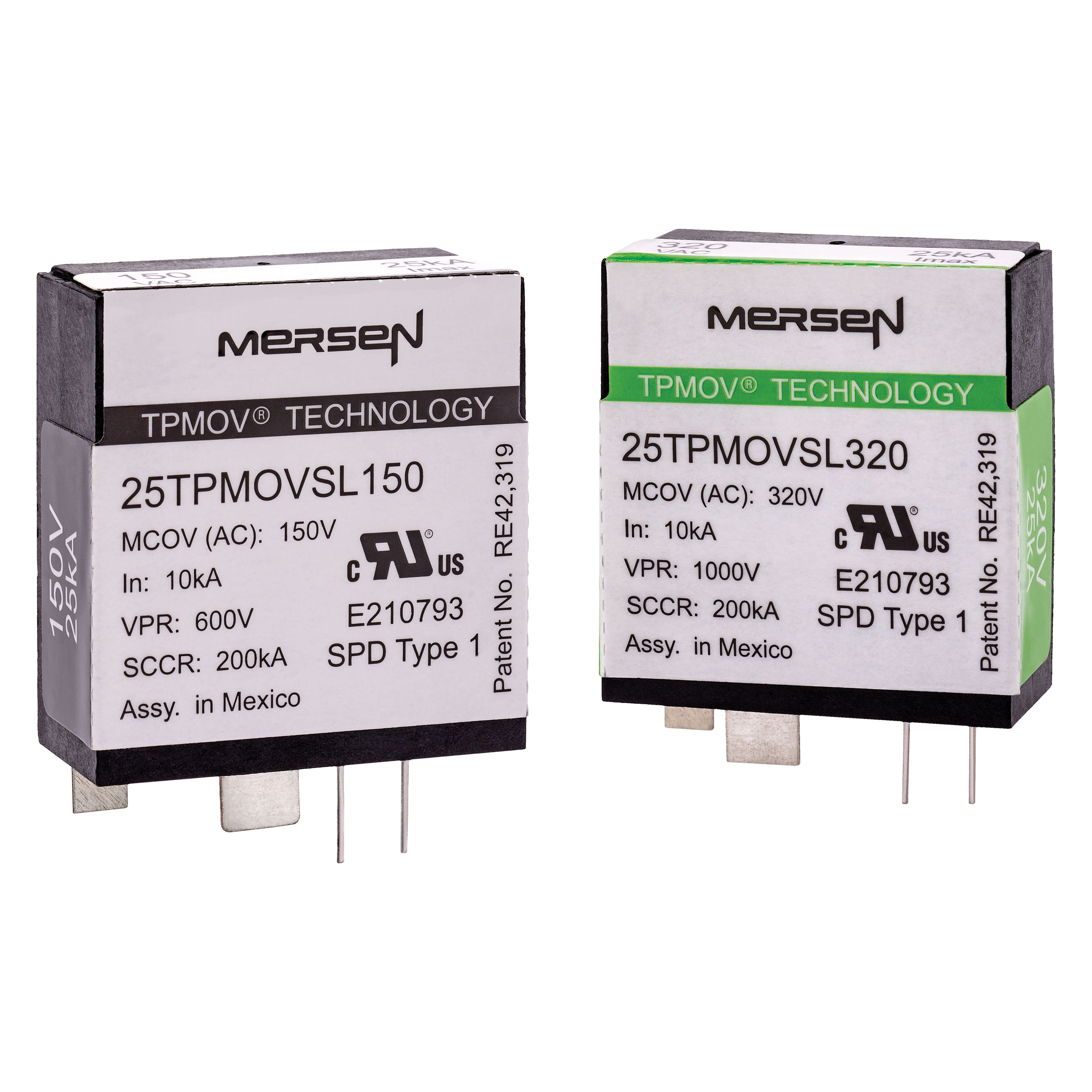

25TPMOVSL150
SPD - TPMOV 150V Short Leads Microswitch 25 kA 500 pk
Mersen’s patented TPMOV technology eliminates common failure
modes that occur in the field with standard metal oxide varistors.
Internally the TPMOV is comprised of a voltage clamping device and
a disconnecting apparatus that monitors the status of the metal oxide
disc making the TPMOV a fail-safe device. Upon failure the TPMOV is
also equipped with a visual pin indicator as well as a normally open
micro-switch providing remote indication, if applicable. Mersen’s
25TPMOV is rated for 25kA – 8/20μs peak surge current and is
available for maximum continuous operating voltages (MCOV) from
150V to 320VAC.
Brand: Surge-Trap®
Add to QuoteSpecifications
| Item Number | 25TPMOVSL150 |
|---|---|
| EAN UPC Code | 782001492069 |
| GTIN Sell Pack | 30782001492060 |
| Approvals Standards |
|
| Brand Name | Mersen |
| Country Of Origin | MX |
| Features Benefits |
|
| Frequency HZ | 50/60 Hz |
| Ingredient Brand | TPMOV® |
| Max Operating Temp | 85 °C |
| Max Storage Temp | 85 °C |
| Min Operating Temp | -40 °C |
| Min Storage Temp | -40 °C |
| Product Line | 25kA TPMOV (Thermally Protected MOV) |
| Product Brand | Surge-Trap® |
| Product Family | Surge Protection |
| Product Group | Surge Protection Components for OEM Designers |
| Short Circuit Current Rating SCCR | 200 kA |
| Support Brand | Unassigned |
| UL Category Code | VZCA |
| UL File Number | E210793 |
| UL SPD Type | Type 1 Component Assembly |
| Housing Material | PET (Polyethelene Terphthalate) |
| Indication System | 1 |
| Indication System Type | Microswitch |
| Installation Mounting | PCB Mount |
| Product Height | 1.28 in |
| Product Length | 1.19 in |
| Product Weight | 0.062 lb |
| Product Width | 0.54 in |
| Sell Pack Description | Case |
| Sell Pack Height | 9.38 in |
| Sell Pack Length | 30.81 in |
| Sell Pack Width | 5.5 in |
| Sell Pack Quantity | 500 Each |
| Sell Pack Weight | 24.91 lb |
| AC Or DC | AC |
| Item Description | TPMOV T1 25MM 25KA 150V SL |
| Max Discharge Current Imax 8 20 | 25 kA |
| Nominal Discharge Current | 10kA |
| Nominal Operating Volt Rating Un | 150 V |
| Order Multiple | 500 |
| Short Description | SPD - TPMOV 150V Short Leads Microswitch 25 kA 500 pk |
| Suitable For Outdoor Use | 0 |
| Suitable For Outdoor Use | 0 |
