VMVL-3-UNV1-M3

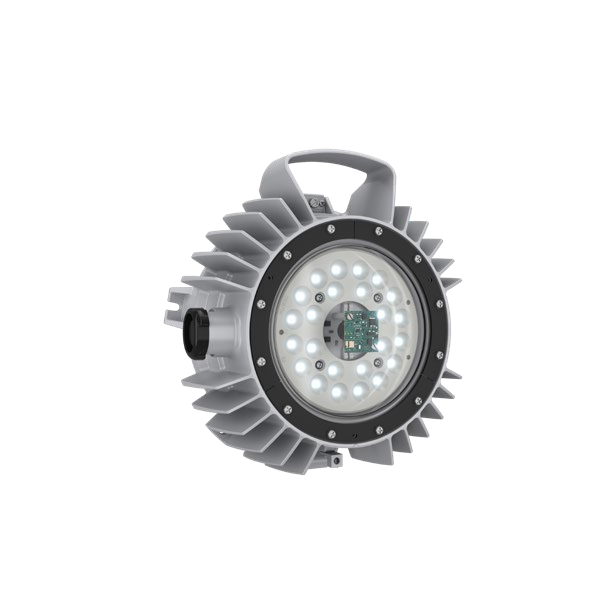

Crouse-Hinds Champ VMVL-3-UNV1-M3 LED Light Fixture, 3225 lm, 21W
Crouse-Hinds Champ VMVL series hazardous area LED light fixture. Delivers 3225 lumens at 21W on standard UNV1 driver. Rated IP66/Type 4X.
Precision-engineered, heavy-duty industrial solution designed to withstand harsh physical environments, high vibrations, and outdoor exposure.
Brand: Crouse Hinds
Add to Quote Download Spec Sheet PDFFeatures
- Delivers high efficacy light output of 3225 lumens at 21W.
- Die-cast copper-free aluminum housing with Corro-free epoxy powder coat.
- UL Listed for Class I, Division 2 and Class II, Division 1 hazardous areas.
- IP66 / NEMA 4X wet location and marine shipboard environment rating.
- Supports flexible universal voltage input 100-277 VAC and 127-250 VDC.
Specifications
| Catalog Number | VMVL-3-UNV1-M3 |
|---|---|
| Brand | Eaton Crouse-Hinds |
| Product Category | Hazardous Location LED Lighting |
| Efficacy | 153 lm/W |
| Voltage Range | 100–277 VAC (50/60 Hz), 127–250 VDC |
| Housing Material | Die-Cast Copper-Free Aluminum with Corro-free epoxy powder coat |
| Lens Material | Heat- and impact-resistant glass |
Product Attributes
| Lumen Output | 3225 lm |
|---|---|
| Nominal Wattage | 21 W |
| Color Temperature | 5000K Cool White (70 CRI) |
| IP Rating | IP66 |
| NEMA Rating | Type 4X |
| Operating Temperature | -40°C to +65°C |
| Classifications | Class I, Div 2, Groups A,B,C,D; Class II, Div 1, Groups E,F,G; Class III; Simultaneous Presence |
